4 Sony CCD Sensor Day/Night Vision Color Camera H.264 Real Time Recording Network Remote Viewing DVR System Built-in 500GB HDD - K404AV500G8752

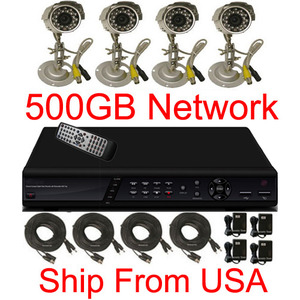

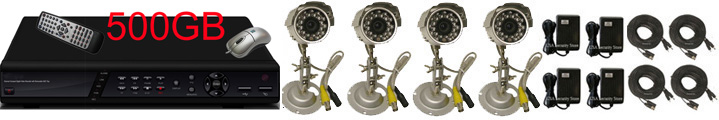

PACKAGE CONTENTS

Mode: K404AV500G8752



This is a completely plug in and play network security surveillance system. The DVR system supports remote viewing over internet. 500GB hard disk driver has been built inside the DVR already. The system is included 4 Sony CCD Image Sensor Day Night Outdoor Infrared Bullet Color Cameras, Four 65FT video cables and Power supply adapters. You don't need any more other devices. You just need to install the cameras, connect the cameras to the DVR, hook up the DVR to your TV Or PC monitor and you system is set up. So it very easily to have a surveillance system for the protection of your home office or other valuables.

Unlike VCR tapes, the DVR system displays high quality images. Four cameras display at same time at your TV. Image records much longer time than VCR without frequent tape changing. Search and display back instantly based on date and time without the hassles of rewinding and forwarding.



One 4 Camera Real Time 120FPS Network Stand Alone DVR
500GB Hard Disk Driver Build in
Four Day Night Vision Sony CCD Sensor Color Indoor/Outdoor Bullet Camera 460TVL
Four DC 12V 500mA Power Adapter
Four 65ft Video Cable with Power Wire
If you need longer cable, please send email to us.
Microphone is not included
One Year Warranty Guaranteed



DVR Feature
H.264Compression crystal clear images with real time performance
Support network remote recording & backup
PC Computer and 3G Cell Phone Remote Viewing
Remote surveillance with 5 users simultaneously
Support manual / timer / motion / alarm / remote recording functions
Support 4 audio-in, 1 audio-out to record sounds
System auto recovery after power reconnected
Watermark function ensures authentication of the recorded images
Support TCP/IP, PPPoE, DHCP and DDNS network connection
Easy to install and connects to your existing TV, VCR, DVR Quad Process



Products Specification
Video System: NTSC / PAL (switchable)
Video Compression Format: Frame: H.264; CIF:H.264

Video Input: 4 Channels. Composite video signal 1 Vp-p 75O BNC
Video Out: 1Channels. Composite video signal 1 Vp-p 75O BNC
Maximum Recording Rate: D1: 720×480 pixels with 100 IPS
CIF: 352×240 pixels with 120 IPS
Image Quality Setting: Best, High, Normal and Basic
Hard Disk Storage: SATA type, supported HDD*1, capacity over 1000GB
Recording Mode: Manual / Timer / Motion / Alarm / Remote
Audio I/O : 4 audio input, 1 audio output (Mono)
Motion Detection Area: 16 × 12 grids per camera for all channels
Motion Detect Sensitivity: 4 adjustable Level
Pre-alarm Recording: Yes (8MB)
Backup Device: USB Back Up
Web Interface: Support licensed software AP and IE browser
Remote Alarm Notification: E-mail images, upload images to FTP site’s specific account
Network Connection: Support TCP/IP, PPPoE, DHCP and DDNS function
PTZ control: Support PELCO-D protocol
VGA VGA Output
Alarm I/O: 4 inputs, 1 output
Digital Zoom: 2X digital zoom (live mode) Key Lock Yes
Key Lock: Yes
Video Loss Detection: Yes
Camera Title: Support up to 6 letters
Video Adjustable: Hue / Color / Contrast / Brightness
Date Display Format: YY/MM/DD, DD/MM/YY, MM/DD/YY, and Off
Power Source: DC 19V
Power Consumption: <42 W
Operating Temperature: 10" ~ 40" (50"~104")
Dimensions (mm): 343mm (W) × 59mm (H) × 223mm (D)
Weight: 2Kg

4 CH Stand Alone DVR with Network



Camera Features

Brand New
Day Night Vision Indoor/Outdoor Vandal Bullet Color Camera
Manual Pan / Tilt for with Wall mount and Ceiling mount
24 infra-red LEDs see in the dark up to 50ft
Clear resolution 460 TV Lines video display
Powerful 1/3” Sony CCD color image sensor chip
Easy to install and connects to your existing TV, VCR, DVR Quad Process
Operates in freezing temperatures down to 4°F(-20°C)
Model CUC8752



SPECIFICATION

24 LEDs Infrared Color Camera

Pickup device: 1/3 Sony Color CCD Number of pixels: NTSC:510(H) X 492(V)
System of signal: NTSC
Horizontal resolution: 460TV Line
Minium illumination: 0.0Lux/F1.2
Lens: 3.6mm
Infrared 24 LEDs 65ft
Backlight compensation: ON/OFF(Optional)
Electronic shutter: 1/50(1/60) ≤1/100,000ses
White balance: AUTO
S/N ratio: >48dB
Gamma correction: >0.45
Operation temperature: -20≤50
Sync.system: Internal
Video output: 1.2Vp-p/75
Power supply: DC12V
Dimensions(mm): 55(D)x75(H)
Weight(g): 320
