8 Sharp CCD Day/Night Vision Color Camera Real Time Recording Network Remote Viewing DVR Securiity System Built-in 500GB HDD - R801N60W500G8653P

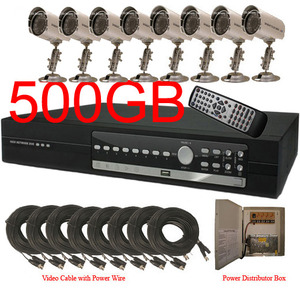

PACKAGE CONTENTS

Mode: R801N60W500G8653P

8 Cameras Professional Stand Alone DVR
Network Remote Access Cameras over Internet on Windows and Mac OS
500GB Hard Disk Has Been Installed Inside
Real Time Display / Recording in 240 Frame Per Second
8 Sharp CCD High Resolution Infrared Day / Night Bullet Cameras
High Resolution 1600x1200 VGA LCD Monitor and TV Output
Remote Control and USB back up
4 Audio Input Record and one Audio output
8 x 65FT Video Cables with Power Wire
One 9 CH Power Distributer Box

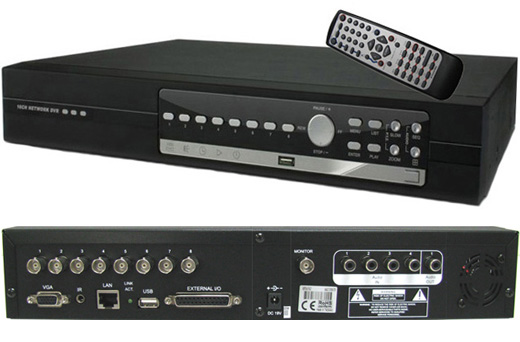

8 CH Stand Alone DVR Network Machine
Real Time Display and Recording in 240FPS
IR Remote Controller
8 Sharp CCD Day Night Infrared Bullet Cameras
8x65FT cable with Power Wire
If you need more cable, please send email to us
9 CH Power Supply Distributor Box
PC Clinet Software for Remote Access Camera over Internet
500GB Hard disk driver is included.
One Year Full Warranty in USA



Feature
8CH Camera Real Time Digital Video Recorder
Real time performance with 240 IPS
Easy backup with USB FLASH DRIVE
Easy Backup with Network
Support network remote recording & backup
Support manual,timer,motion,alarm,remote recording functions

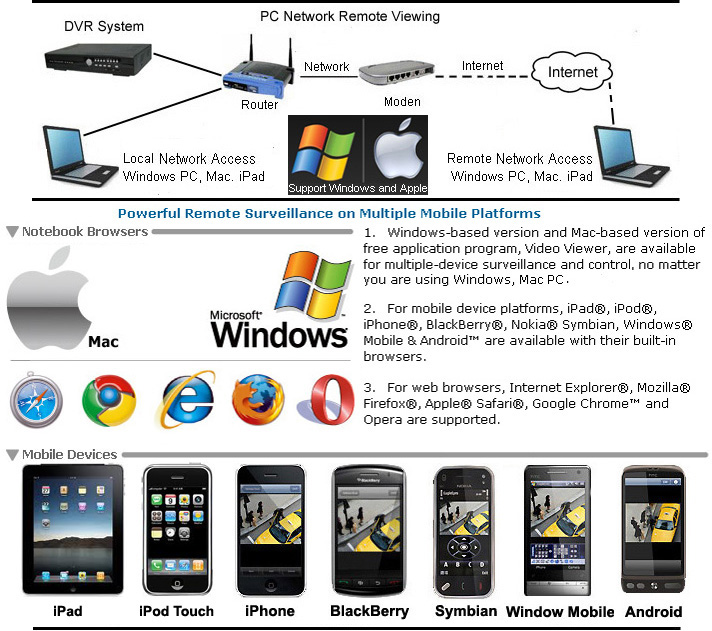

Remote Viewing via internet on Windows and Mac OS
Remote surveillance on mobile phone via 3G & GPRS
Alarm trigger send images to designated e-mail and FTP address
Advanced motion detection function
Web surveillance supports 5 viewers simultaneously
IR remote control of the system and PTZ through RS-485
Support PELCO-D protocol for PTZ Control
Support static IP, PPPOE, and DHCP with DDNS function
Record audio with 4ch in and 2ch mono audio out
System auto recovery after power reconnected
Watermark function ensures authentication of the recorded images
Easy to install and connects to your existing TV, VCR, DVR Quad Process
One Year Warranty, Service in San Jose, California



Products Specification

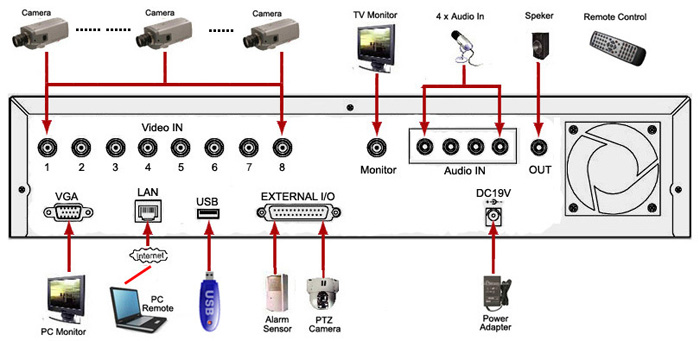

Video System: NTSC / PAL (switchable)
Video Compression Format: H.264
Video Input: 8 Channels. Composite video signal 1 Vp-p 75O BNC
Video Out: 1 Channels. Composite video signal 1 Vp-p 75O BNC
VGA Out Yes 1600x1200 Resolution
Maximum Recording Rate: CIF: 352 × 240 pixels with 240 IPS
Frame: 720 × 480 pixels with 120 IPS
Adjustable Recording Speed Frame: 30, 15, 7, 3 IPS
CIF: 120, 60,30, 15 IPS
Image Quality Setting: Best, High, Normal and Basic
Hard Disk Storage: SATA type, supported SATA*2, capacity over 2000GB
Recording Mode: Manual / Timer / Motion / Alarm / Remote
Audio I/O : 4 audio input, 1 audio output (Mono)
Motion Detection Area: 16 × 12 grids per camera for all channels
Motion Detect Sensitivity: 4 adjustable Level
Pre-alarm Recording: Yes (8MB)
Backup Device: Network remote backup
Web Interface: Windows IE, Mac FireFox, QuickTime Player
Remote Alarm Notification: E-mail images, upload images to FTP site’s specific account
Network Connection: Support TCP/IP, PPPoE, DHCP and DDNS function
PTZ control: Support PELCO-D protocol
Remoter Control Yes
Alarm I/O: 8 inputs, 1 output
Digital Zoom: 2X digital zoom (live mode) Key Lock Yes
Key Lock: Yes
Video Loss Detection: Yes
Camera Title: Support up to 6 letters
Video Adjustable: Hue / Color / Contrast / Brightness
Date Display Format: YY/MM/DD, DD/MM/YY, MM/DD/YY, and Off
Power Source: DC 19V
Power Consumption: <42 W
Operating Temperature: 10" ~ 40" (50"~104")
Dimensions (mm): 343mm (W) × 59mm (H) × 223mm (D)
Weight: 5Kg



Camera Features

Weatherproof and Vandaproof
24 infra-red LEDs see in the dark up to 65ft
Clear resolution 420 TV Lines video display
Powerful 1/3” Sharp CCD color image sensor chip
Easy to install and connects to your existing TV, VCR, DVR Quad Process
Operates in freezing temperatures down to 4°F(-20°C)
Model CUC8653



Camera Specification

Pickup device: 1/3 Sharp Color CCD
Number of pixels: NTSC:510(H) X 492(V)
System of signal: NTSC
Horizontal resolution: 420TV Line
Minium illumination: 0.0Lux/F1.2
Lens: 3.6mm
Infrared 24 LEDs 65ft
Backlight compensation: ON/OFF(Optional)
Electronic shutter: 1/50(1/60) ≤1/100,000ses
White balance: AUTO
S/N ratio: >48dB
Gamma correction: >0.45
Operation temperature: -20≤50
Sync.system: Internal
Video output: 1.2Vp-p/75
Power supply: DC12V
Dimensions(mm): 55(D)x75(H)
Weight(g): 320
