8CH Real Time Recording Network Remote Viewing DVR w/ 4 Sharp CCD Sensor Day/Night Vision Color Camera Securiity System Built-in 500GB HDD - K808AV500G8653-4

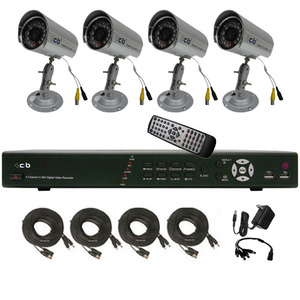

PACKAGE CONTENTS

Mode: K808AV500G8653-4



This is a completely plug in and play networkable security surveillance system. The 8CH DVR supports remote viewing over internet. 500GB hard disk driver has been built inside the DVR already. The system is included four Sharp CCD Infrared Bullet Cameras, four 65FT video cables and Power supply. You don't need any more other devices. You just need to install the cameras, connect the cameras to the DVR, hook up the DVR to your TV and you system is set up. So it very easily to have a surveillance system for the protection of your home office or other valuables.

Unlike VCR tapes, the DVR system displays high quality images. 8 cameras display at same time at your TV. Image records much longer time than VCR without frequent tape changing. Search and display back instantly based on date and time without the hassles of rewinding and forwarding.



8 CH Stand Alone DVR Network Machine
Real Time Display and Recording in 240FPS
IR Remote Controller
Four Sharp CCD Day Night Infrared Bullet Cameras
4x65FT cable with Power Wire
If you need more cable, please send email to us
Four Power Supply
PC Clinet Software for Remote Access Camera over Internet
500GB Hard disk driver is included.
One Year Full Warranty in USA



Feature
8CH Camera Real Time Digital Video Recorder
Real time performance with 240 IPS
Easy backup with USB FLASH DRIVE
Easy Backup with Network
Support network remote recording & backup
Support manual,timer,motion,alarm,remote recording functions
Remote Viewing via internet on Windows and Mac OS
Remote surveillance on mobile phone via 3G & GPRS
Alarm trigger send images to designated e-mail and FTP address
Advanced motion detection function
Web surveillance supports 5 viewers simultaneously
IR remote control of the system and PTZ through RS-485
Support PELCO-D protocol for PTZ Control
Support static IP, PPPOE, and DHCP with DDNS function
Record audio with 2ch in and 1ch mono audio out
System auto recovery after power reconnected
Watermark function ensures authentication of the recorded images
Easy to install and connects to your existing TV, VCR, DVR Quad Process
One Year Warranty, Service in San Jose, California

8 CH Stand Alone DVR with Network



Products Specification
Video System: NTSC / PAL (switchable)
Video Compression Format: H.264
Video Input: 8 Channels. Composite video signal 1 Vp-p 75O BNC
Video Out: 1 Channels. Composite video signal 1 Vp-p 75O BNC
VGA Out Yes 1600x1200 Resolution
Maximum Recording Rate: Real Time Record, 240 Frames Per Second
Image Quality Setting: Best, High, Normal and Basic
Hard Disk Storage: SATA type, supported SATA 1, capacity to 1000GB
Recording Mode: Manual / Timer / Motion / Alarm / Remote
Audio I/O : 2 audio input, 1 audio output (Mono)
Motion Detection Area: 16 × 12 grids per camera for all channels
Motion Detect Sensitivity: 4 adjustable Level
Pre-alarm Recording: Yes (8MB)
Backup Device: Network remote backup
Web Interface: Windows IE, Mac FireFox, QuickTime Player
Remote Alarm Notification: E-mail images, upload images to FTP site’s specific account
Network Connection: Support TCP/IP, PPPoE, DHCP and DDNS function
PTZ control: Support PELCO-D protocol
Remoter Control Yes
Alarm I/O: 4 inputs, 1 output
Digital Zoom: 2X digital zoom (live mode) Key Lock Yes
Key Lock: Yes
Video Loss Detection: Yes
Camera Title: Support up to 6 letters
Video Adjustable: Hue / Color / Contrast / Brightness
Date Display Format: YY/MM/DD, DD/MM/YY, MM/DD/YY, and Off
Power Source: DC 19V
Power Consumption: <42 W
Operating Temperature: 10" ~ 40" (50"~104")
Dimensions (mm): 343mm (W) × 59mm (H) × 223mm (D)
Weight: 5Kg



Camera Features

• Weatherproof and Vandaproof
  24 infra-red LEDs see in the dark up to 65ft
  Clear resolution 420 TV Lines video display
  Powerful 1/3” Sharp CCD color image sensor chip
  Easy to install and connects to your existing TV, VCR, DVR Quad Process
  Operates in freezing temperatures down to 4°F(-20°C)
  Model CUC8653



SPECIFICATION

24 LEDs Infrared Color Camera

Pickup device: 1/3 Sharp Color CCD
Number of pixels: NTSC:510(H) X 492(V)
System of signal: NTSC
Horizontal resolution: 420TV Line
Minium illumination: 0.0Lux/F1.2
Lens: 3.6mm
Infrared 24 LEDs 65ft
Backlight compensation: ON/OFF(Optional)
Electronic shutter: 1/50(1/60) ≤1/100,000ses
White balance: AUTO
S/N ratio: >48dB
Gamma correction: >0.45
Operation temperature: -20≤50
Sync.system: Internal
Video output: 1.2Vp-p/75
Power supply: DC12V
Dimensions(mm): 55(D)x75(H)
Weight(g): 320
